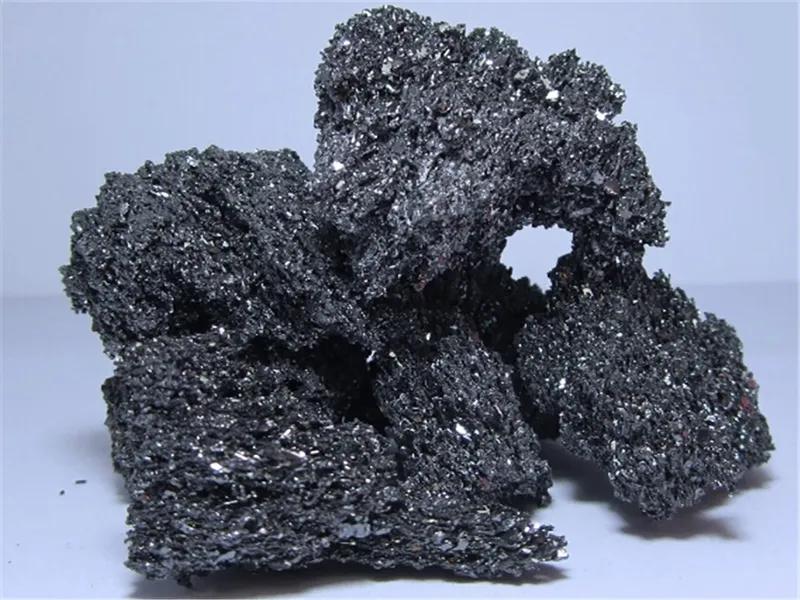

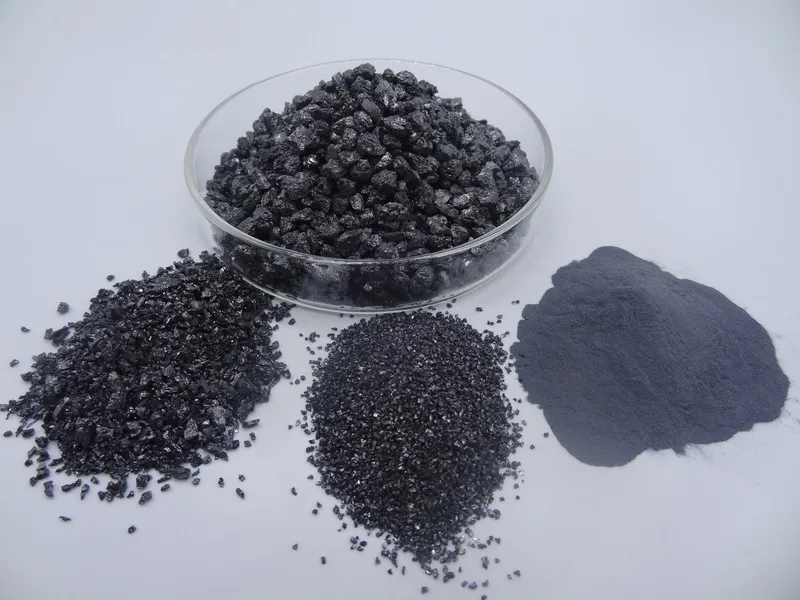

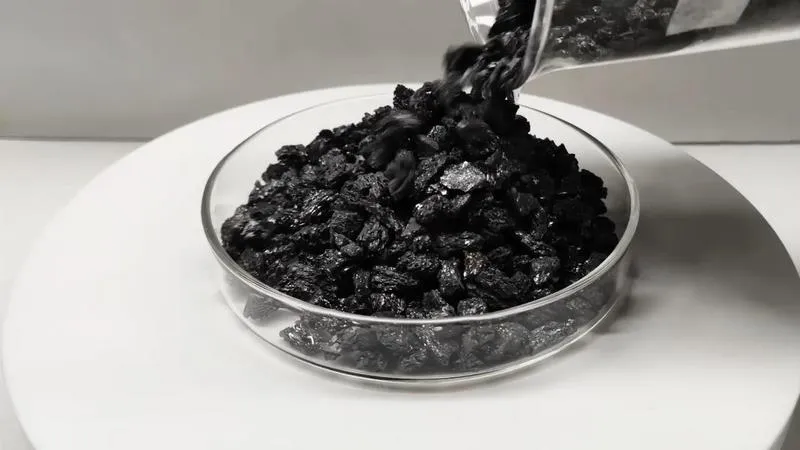

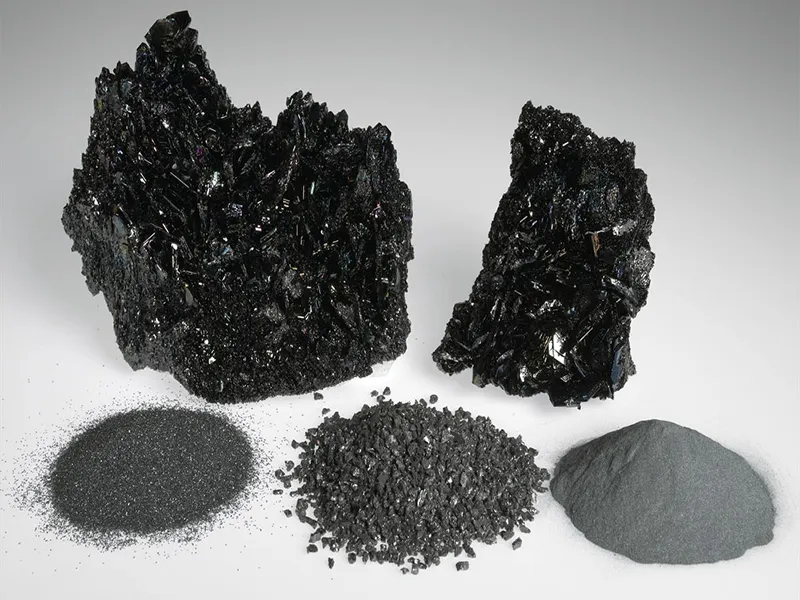

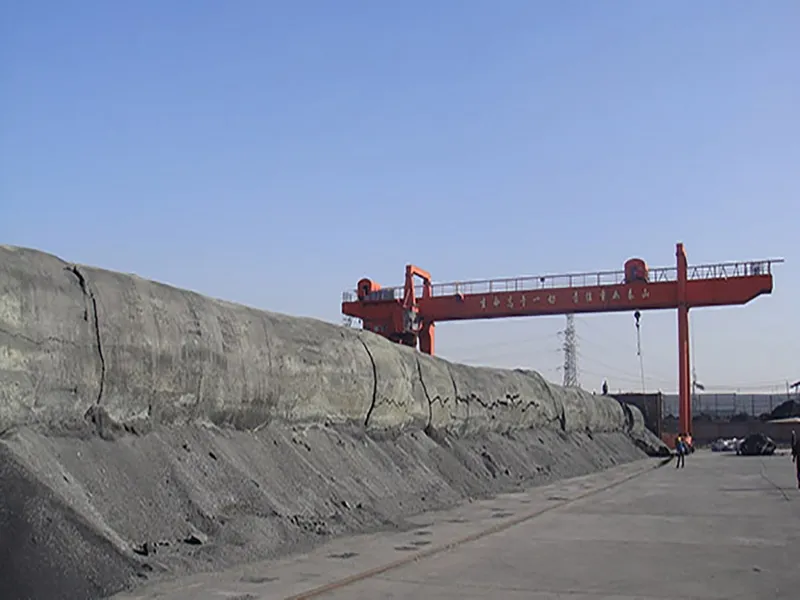

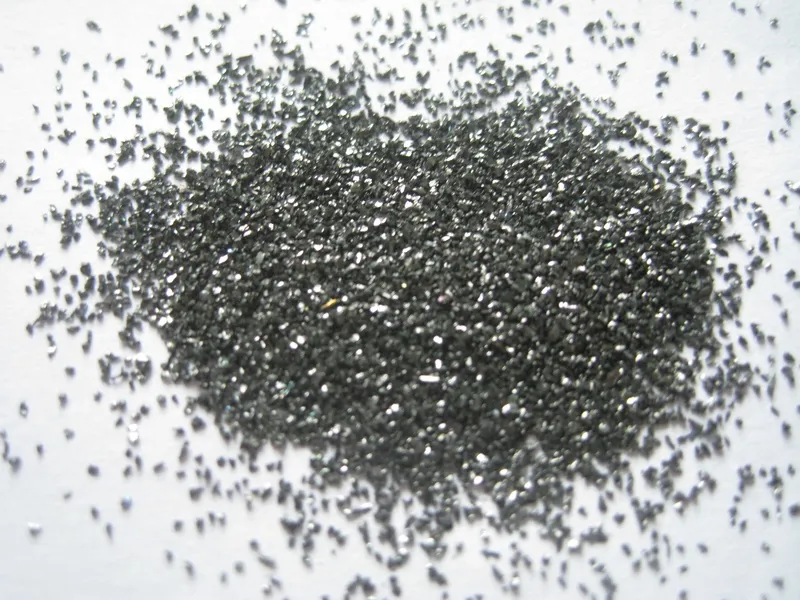

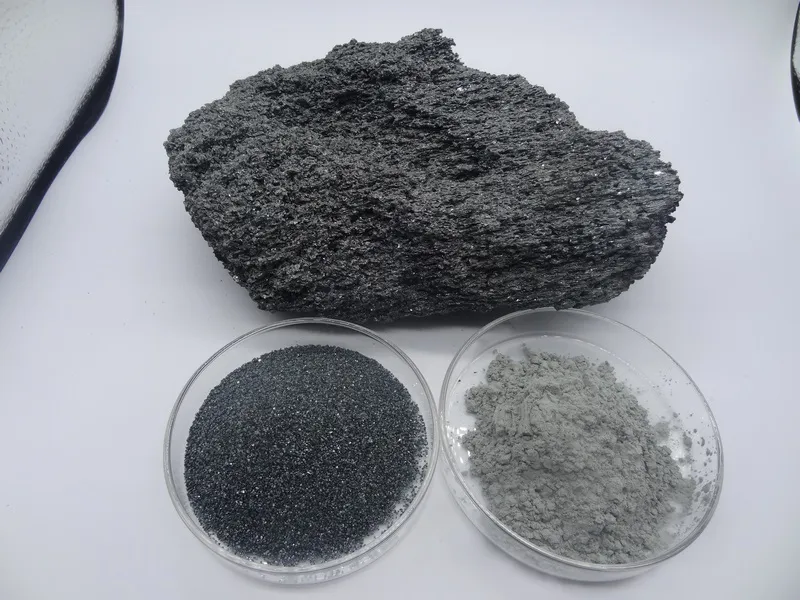

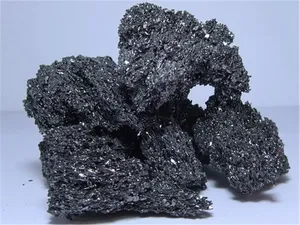

Black silicon carbide is produced by smelting quartz sand, petroleum coke (or coal coke), wood chips, and other raw materials in a resistance furnace. It appears as a black opaque body with hexagonal crystals and a Mohs hardness of 9.15. Second only to diamond and boron carbide, it possesses brittle and sharp properties with a certain degree of conductivity.
Mohs Hardness | 9.15 |
Melting Point | 2250℃ |
Maximum Use Temperature | 1900℃ |
True Density | 3.2-3.4g/cm3 |
Grits Size | F8 F10 F12 F14 F16 F20 F22 F24 F30 F36 F40 F46 F54 F60 F70 F80 F90 F100 F120 F150 F180 F220 P12 P16 P20 P24 P30 P36 P40 P50 P60 P80 P100 P120 P150 P180 P220# |
|
Chemical Composition (%) | SIC | 98-99% |
F.C | ≤0.2 | |
Fe2O3 | ≤0.2 |
Micropowder Size | P Standard | P240 P280 P320 P360 P400 P500 P600 P800 P1000 P1200 P1500 P2000 P3000 P4000 P5000 |
W Standard | W63 W50 W40 W28 W20 W14 W10 W7 W5 W3.5 | |
FEPA Standard | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 | |
JIS Standard | 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# 4000# | |
Chemical Composition (%) | SIC | 97-99 |
F.C | ≤0.3 | |
Fe2O3 | ≤0.3 |

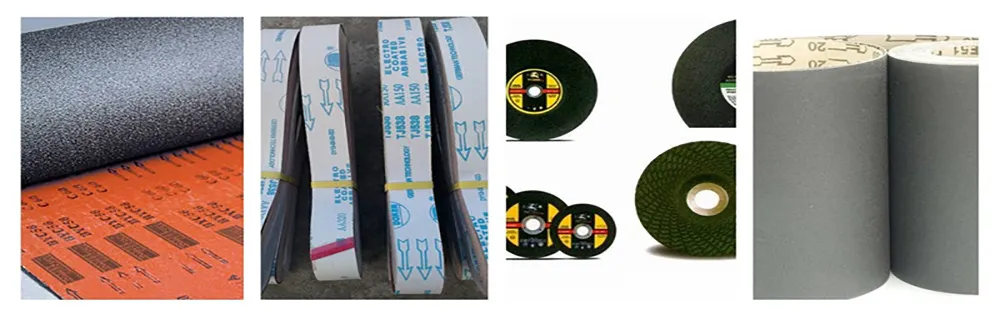

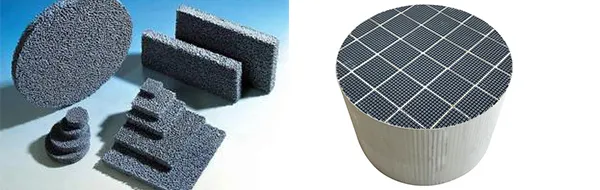

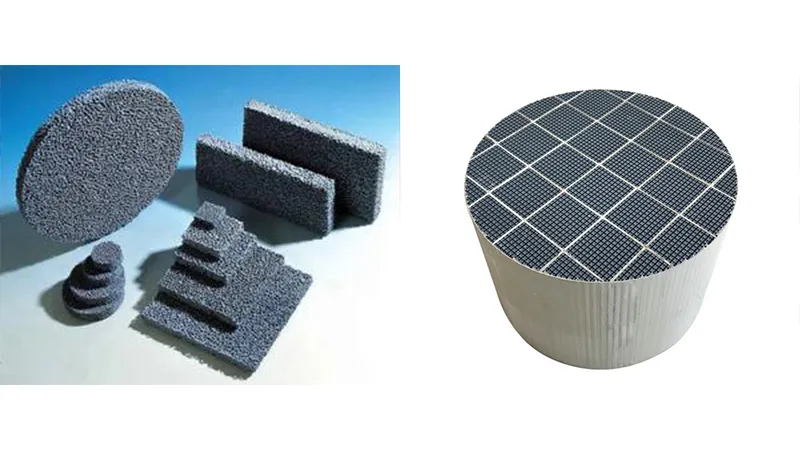

Use in many different industries such as abrasives, refractories, sandblasting etc.
