Tabular Alumina

Tabular Alumina
Tabular Alumina Tabular Alumina
Tabular Alumina

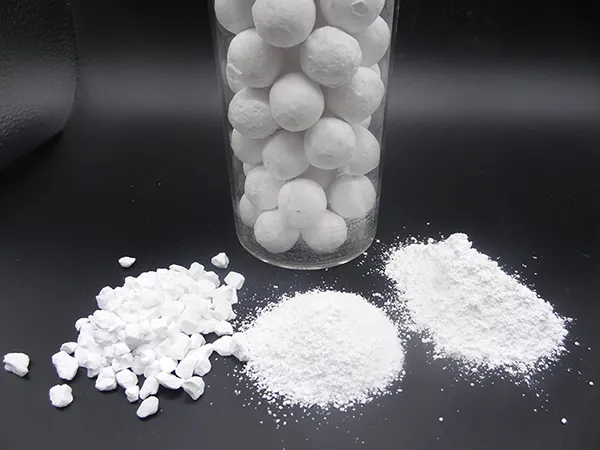

Tabular alumina is a pure sintered alumina, thoroughly calcined without the addition of any additives such as MgO or B2O3. It boasts a coarse, well-developed α-Al2O3 crystal structure, with an Al2O3 content exceeding 99%. Characterized by a plate-like crystal structure and numerous closed pores, its purity, high thermal stability, and minimal reheating shrinkage contribute to its exceptional properties. After high-temperature treatment, it exhibits excellent thermal shock resistance and flexural strength.

Tabular alumina characteristics: high refractoriness; excellent corrosion resistance; superior erosion resistance; exceptional thermal shock resistance; high strength and good toughness; stable chemical properties.

inquiry

Applications

Tabular alumina finds diverse applications, serving as a primary component in refractory materials like alumina-carbon, alumina-magnesia-carbon, magnesia-alumina-carbon, magnesia-spinel, and alumina-chrome refractory bricks. It is also utilized to enrich the alumina content in high-alumina shaped refractory materials. Its widespread use spans industries such as steelmaking, foundries, ceramics, and beyond, with extensive application throughout the entire iron and steel production process.

Available Size

Fraction 5-10mm, 8-5mm, 3-6mm, 3-5mm, 3-2mm, 1-3mm, 1-2mm, 0.5-1mm, 0.2-0.6mm, 0-0.5mm, 0-0.2mm, 14-28#, 28-48#
Fine Powder 100#-0, 200#-0, 325#-0, 45μm-0, 0-0.045mm

(other sizes are customizable)

Typical Chemical Analysis/Physical Properties

Size Chemical Index Physical Index
Al2O3% SiO2% Fe2O3% Na2O% Volume Density Water Absorption Apparent Porosity
0-1mm 1-3mm 3-5mm 5-8mm 99.2min 0.1max 0.1max 0.35max 3.5g/cm3 1.5 5 max
200#-0 320#-0 325# 99min 0.15max 0.1max 0.4max 3.45g/cm3 2.0 6 max
Test Report

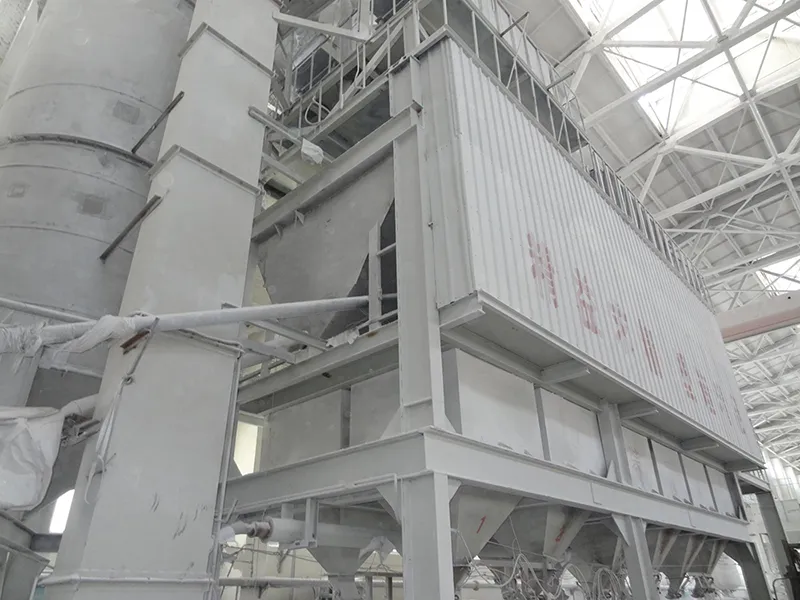

Production Flow

  • Tabular Alumina Use 60# imported aluminum powder from Australia

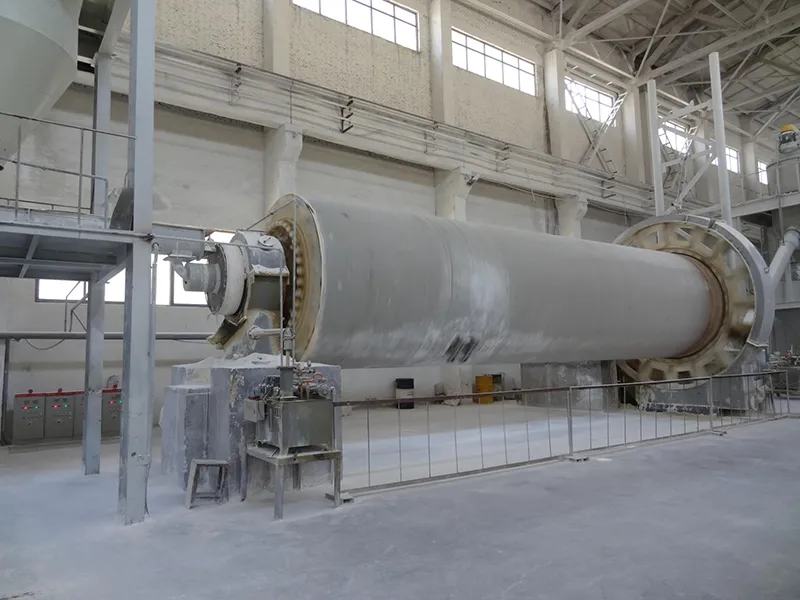

  • Tabular Alumina Employ a ceramic ball mill for the manufacturing process
  • Tabular Alumina Produce tabular alumina balls

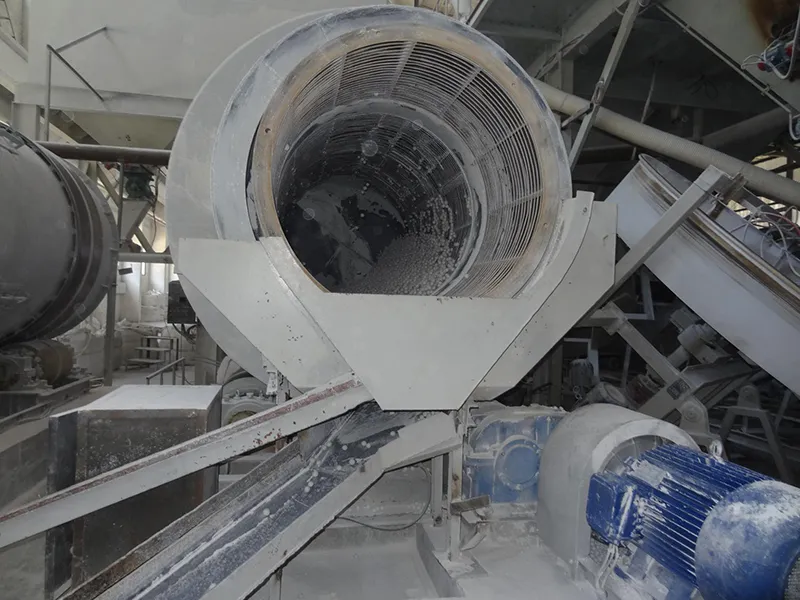

  • Tabular Alumina Form tabular alumina ball cylinders

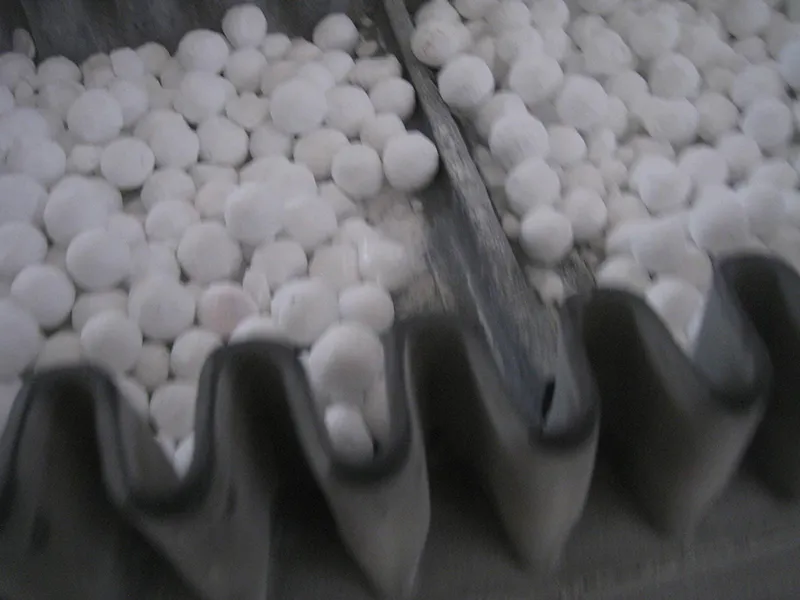

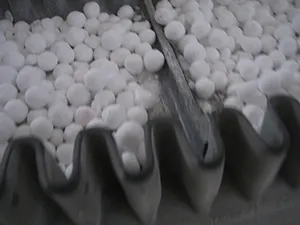

  • Tabular Alumina Dry the tabular alumina balls

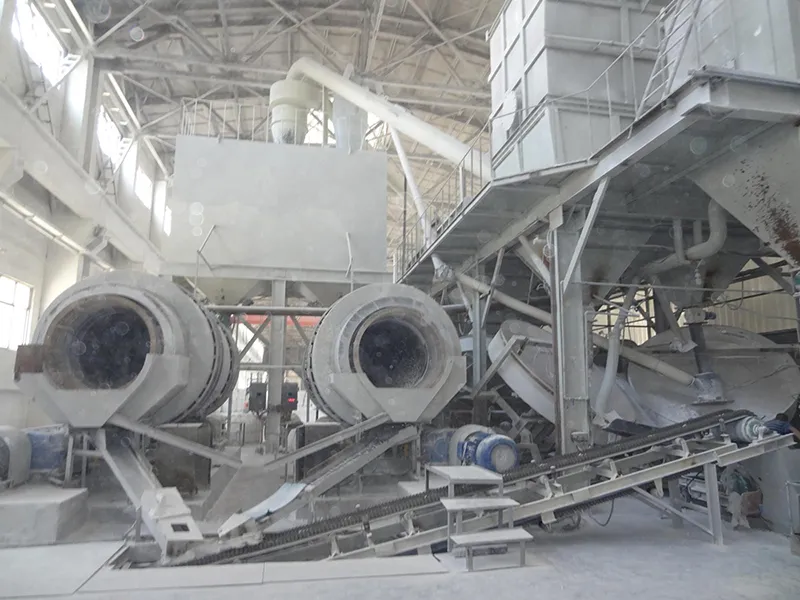

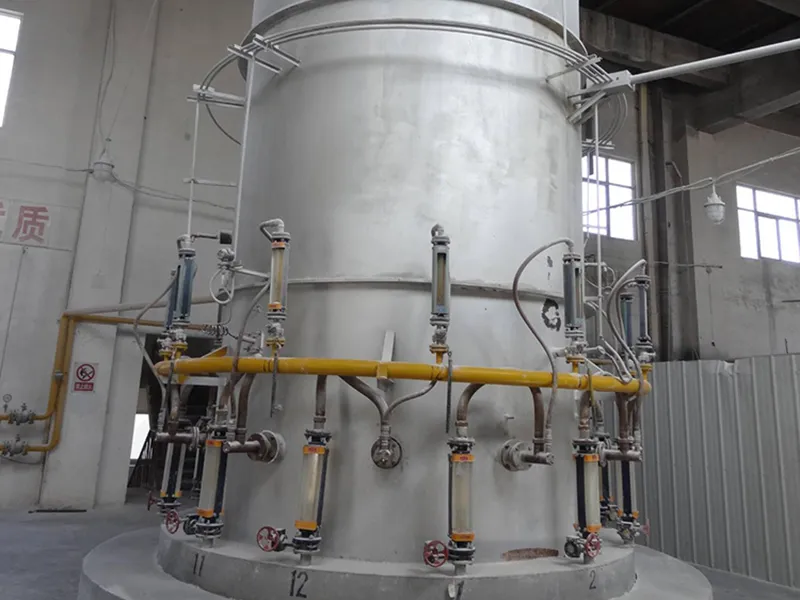

  • Tabular Alumina Sintered tabular alumina ball by high temperature treatment

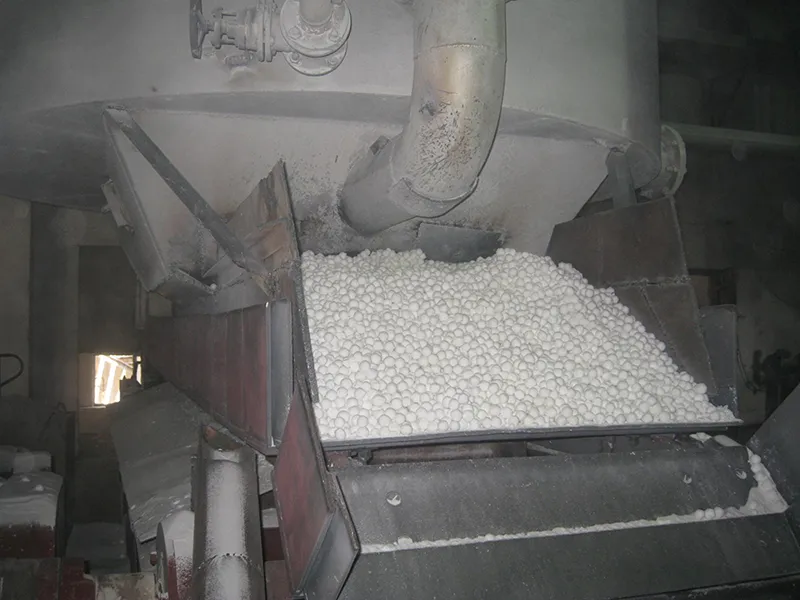

  • Tabular Alumina Obtain sintered balls
  • Tabular Alumina Proceed with sand making

Packaging

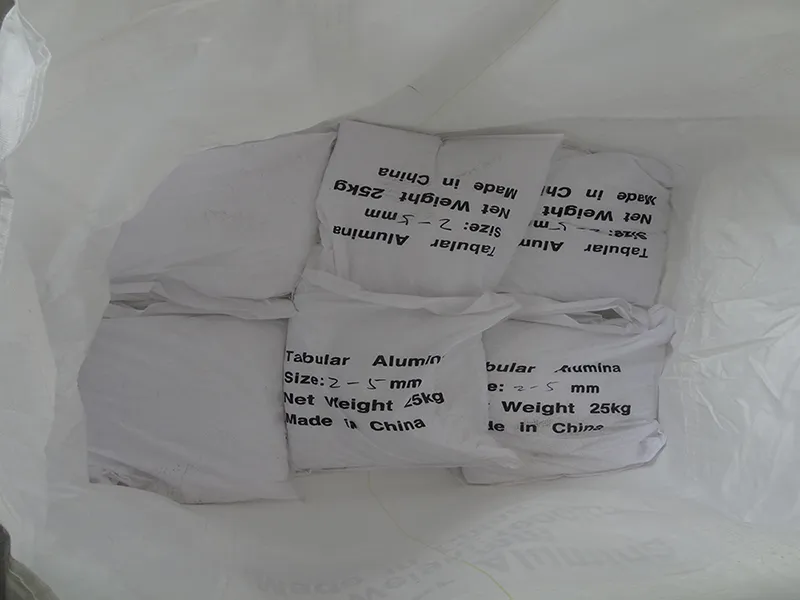

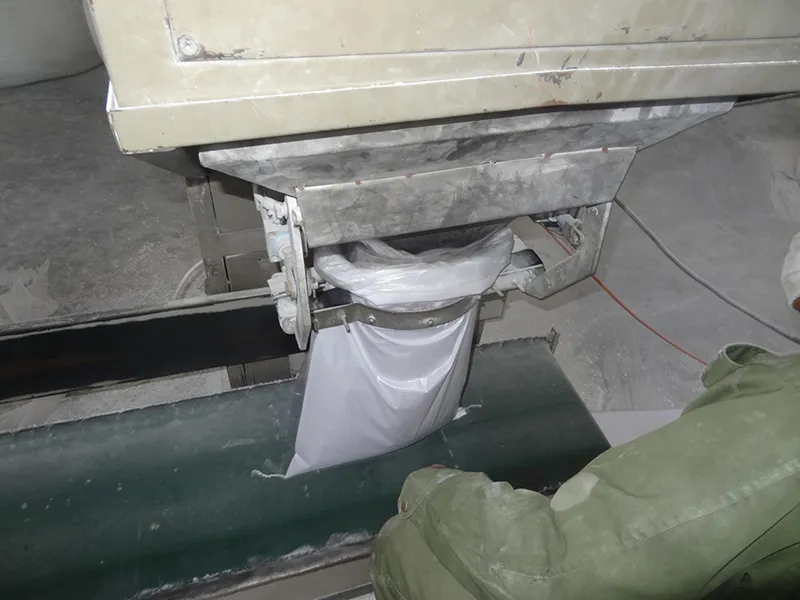

  • Tabular Alumina25kg small bag, filled by weight.

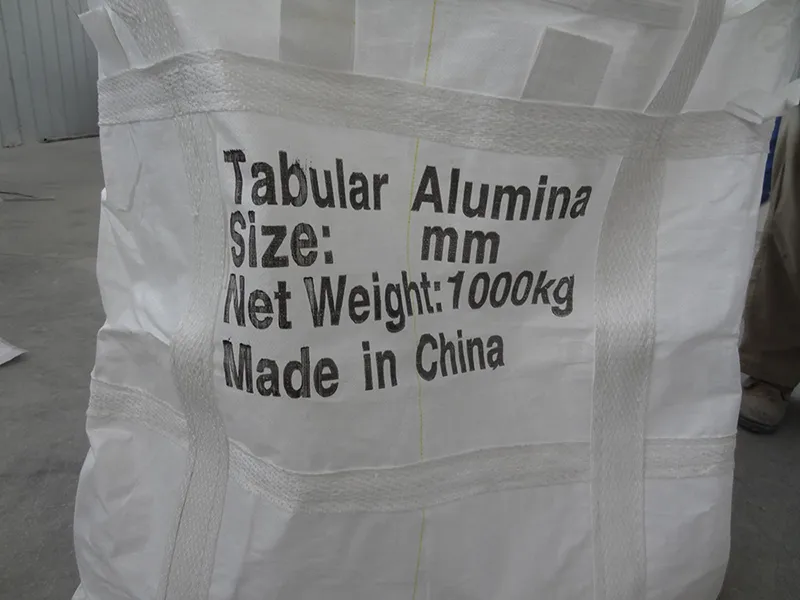

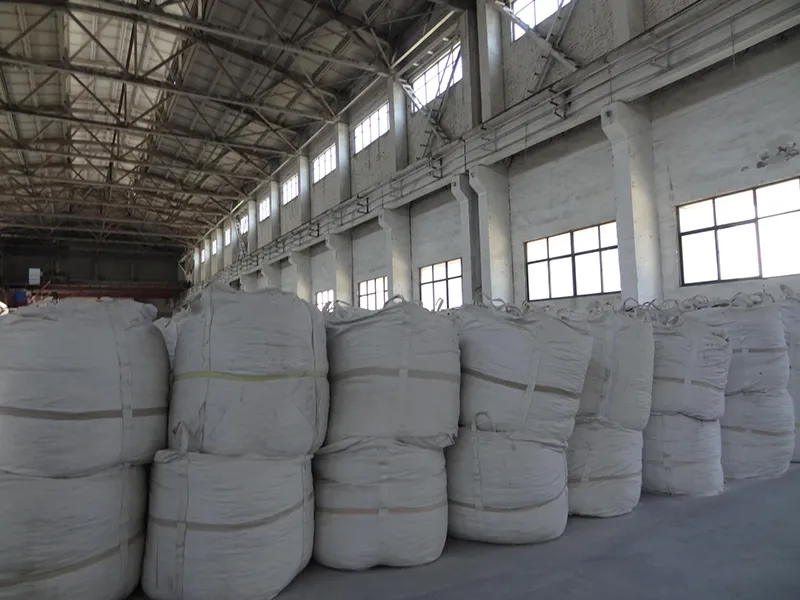

  • Tabular AluminaPackaging in bulk bags.
  • Tabular AluminaCombination of 25kg small bags and bulk bag packaging.
Get in Touch
Fused Alumina

Use in many different industries such as abrasives, refractories, sandblasting etc.

Other Fused Materials

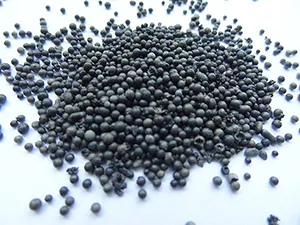

  • Ceramic Foundry Sand

    Ceramic Foundry Sand

    Learn More

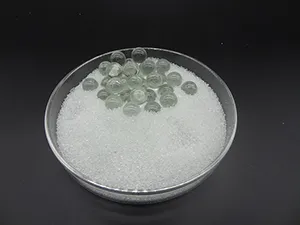

  • Glass Beads

    Glass Beads

    Learn More
  • Boron Carbide

    Boron Carbide

    Learn More

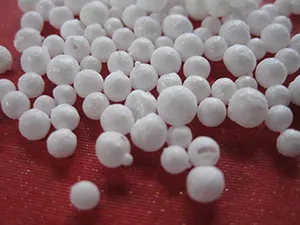

  • Bubble Alumina
